Tsunami Oil Coalescing Filters

Oil Coalescing Filters

REMOVE OIL AEROSOLS AND FINE PARTICULATE

Tsunami oil coalescing filters deliver high grade compressed air and protect critical equipment from oil aerosols and particulates. Tsunami oil coalescing filters use a non‑wicking drain layer secured to the outside support
core to separate oil and water from the air flow and drain the liquid to the filter sump. The Tsunami Oil Coalescing Filter removes oil aerosols down to .001 ppm, traps particulates down to .01 micron, and is rated for up to 240 cubic feet
per minute (CFM).

Key features and benefits:

  • Chemical‑resistant polypropylene cores and layers support coalescing media
  • Removes oil, oil mist, vapor, and particulate form to .001 ppm(.01 micron)
  • Non‑Wicking layer collects and drains oil into drain sump of the filter housing, preventing entrainment
  • Available with float, electronic, or pneumatic drain options
  • Available for systems with a flow rating from 20 to 240 CFM
  • Made in America
MAX CFM ITEM # PORT SIZE (NPT) DRAIN MAX PSI MAX °F WEIGHT DIMENSIONS
20 21999‑0390‑Z‑FD ¼ FLOAT 250 175 1½ 8½ × 2 × 2

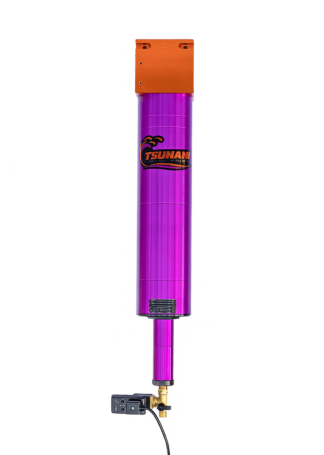

20 21999‑0390‑Z‑ED ¼ ELECTRONIC 250 175 2 12 × 2 × 2

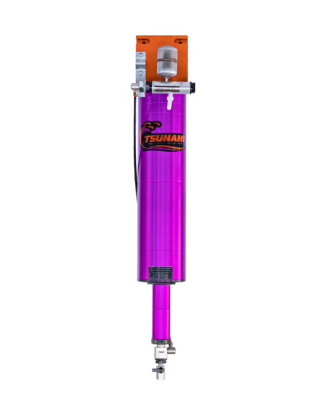

20 21999‑0390‑Z‑MM ¼ PNEUMATIC 250 175 2 10½ × 2 × 2
50 21999‑0131‑Z‑FD ½ FLOAT 250 175 3½ 14½ × 2½ × 2½
50 21999‑0131‑Z‑ED ½ ELECTRONIC 250 175 4½ 17½ × 5½ × 4
50 21999‑0131‑Z‑MM ½ PNEUMATIC 250 175 6 17 × 2½ × 2½
120 21999‑0082‑Z‑FD 1 FLOAT 250 175 9 16 × 3½ × 3½
120 21999‑0082‑Z‑ED 1 ELECTRONIC 250 175 9½ 18 × 6 × 4½
120 21999‑0082‑Z‑MM 1 PNEUMATIC 250 175 9 18 × 3½ × 3½
240 21999‑0850‑Z‑FD 2 FLOAT 250 175 19 16½ × 7½ × 3½
240 21999‑0850‑Z‑ED 2 ELECTRONIC 250 175 21 19 × 10 × 6½
240 21999‑0850‑Z‑MM 2 PNEUMATIC 250 175 20 18½ × 7½ × 3½
