Hytrex

Nominal Rated Polypropylene Filter
Use drop downs to find your product and buy online!

Important Ordering Information
If you are ordering Hytrex Filters with standard ends (with no adapter on either end), select one designation from each of the first three columns. Your Product Order Number will look like this: GX01-10. If you
are ordering Hytrex Filters with end adapters, select designations from all applicable columns. Your Product Order Number will look like this: GX03-30-XK.

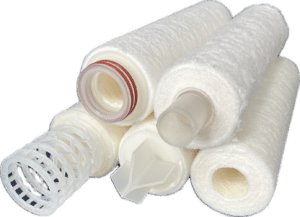

Depth Cartridge Filters

Description and Use
The purity and reliability of Hytrex* cartridge filters ensure consistent results, time after time. Thermally bonded micro fibers create a strong secure cartridge that traps particles throughout its depth. Hytrex combines efficiency, long life and purity to create a high performance depth filter.

• Pure polypropylene construction
• Fast rinse-up in high purity applications
• Meets the requirement of the FDA Title 21 of the
• Code of Federal Regulations 174.5 and relevant subparts of 177
• Wide chemical compatibility
• Automated packaging for a clean finished product
• NSF Standard 42 certified

Typical Applications

• High Purity Chemicals
• Bottled Water
• Pre-treatment for Reverse Osmosis
• Oil & Gas

Ordering Table

Type	Micron Rating (nominal)	Cartridge Length	End #1 Adapter	End #2 Adapter	Gasket Material
GX	01 = 1 μm	4 ⅞ in (12.4 cm)	E = 222 O-Ring	H = Fin	B = Buna
	03 = 3 μm	9 ¾ in (24.8 cm)
	05 = 5 μm	10 in (25.4 cm)	F = 226 O-Ring	K = Self Seal Spring	E = EPDM
	10 = 10 μm	19 ½ in (49.5 cm)
	20 = 20 μm	20 in (50.8 cm)	L = Extended Core	S = Solid End	P = Santoprene
	30 = 30 μm	29 ¼ in (74.3 cm)
	50 = 50 μm	30 in (76.2 cm)	X = Standard Plain End (No Gasket)	X = Standard Plain End (No Gasket)	S = Silicone
	75 = 75 μm	40 in (101.6 cm)
	100 = 100 μm	50 in (152.4 cm)	Y = Flat Gasket	Y = Flat Gasket	V = Viton
