Veolia ZCore ZCORE 05-20-YYP (3059180) Cartridge Filter

Buy 1-2 cases @ $610.80/case (20 per case @ $30.54/each)
Buy 3-7 cases @ $549.72/case (20 per case @ $27.49/each)
Buy 8-12 cases @ $525.29/case (20 per case @ $26.26/each)
Buy 13+ cases @ $482.53/case (20 per case @ $24.13/each)

$610.80 (20 per case @ $30.54/each)

Purchase this product now and earn 1,222 Points!*
Typical Lead time is 40 business days

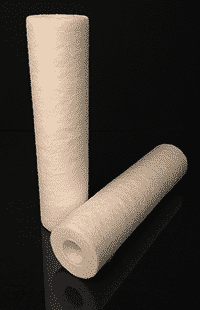

The ZCORE 05-20-YYP is a Veolia ZCore cartridge filter with a nominal retention rating of 5 microns, a length of 20 in. and has a 2 1/2 in. OD and a 1.1 in. ID. One adapter is a Open End while the other adapter is a Open End adapter. ZCore filters also have a molded polypropylene core which adds strength and extends temperature limits. ZCore filters use 100% Polypropylene Construction for high purity demanding applications. All seals are Santoprene. The molded polypropylene core enable ZCore filters to be used in many applications filtering higher viscosity and higher temperature materials.

Veolia material Item number 3059180



Weight 21 lbs
Dimensions 13 × 11 × 22 in
Micron Rating

Cartridge Length

End 1 Adapter

End 2 Adapter

Gasket Material


There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Additional Information

Graded density: traps large particles on the outside, small in the body of the filter. Suez’s Continuous Manufacturing Process: Assures consistency from one box to the next. Zcore Meets FDA Title 21CFR. NOTE; must specify only FDA compliant sealing materials and end adapters.

ZCore filters are available in standard lengths up to 40 inches, and micron ratings from 0.5 to 200 micron. To order quantities above 13 cases, please contact us.
