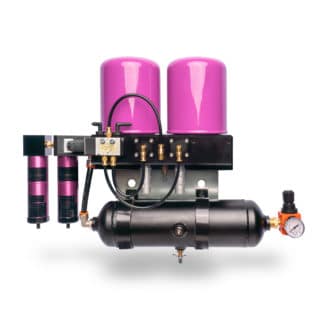

21999-1138 Pure-3 – 10 CFM (3Hp) Regenerative Dryer – 120v

Description

The 21999-1138 Pure-3 Series Regenerative Dryer is rated for 10 CFM airflow, and fitted for 3 Hp
compressors. The Pure-3 system uses a Solenoid Timer Valve to control the dryer and Tsunami
pre-filtration to assure removal of water, oil, and particulates before entering the dryer.

• 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
• Molecular Sieve Desiccant
• Solenoid Valve Timer
• Automatic Float Drains
• Purge Exhaust Mufflers
• Wall Mounting Brackets

Specifications:
Min/Max Air Inlet Temperature: 150°F
Min/Max Operating Pressure: 175
Power Requirement: 120V
Compressor Size: 3 Hp
Port Size: ¼” inlet / ½” outlet NPT
Drain Type: Float

Water Separator: #21999-0390

• Replacement Element: #21999-0846

Oil Coalescing Filter: #21999-0390-Z-FD

• Replacement Element: #21999-0394
