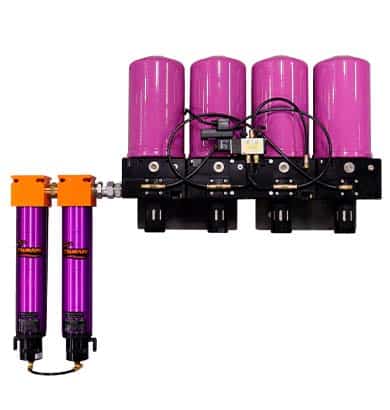

21999-1020-MM Pure-20 – 80 CFM (20HP) Regenerative Dryer – 120v

Description

The 21999-1020-MM Pure-20 Series Regenerative Dryer is rated for 80 CFM airflow, and fitted for 20 HP compressors.
The Pure-20 system uses a Solenoid Timer Valve to control the dryer and Tsunami pre-filtration to
assure removal of water, oil, and particulates before entering the dryer.

• 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
• Molecular Sieve Desiccant
• Solenoid Valve Timer
• Automatic Pneumatic Drains
• Purge Exhaust Mufflers
• Wall Mounting Brackets

Dryer Performance:

• Low relative humidity – down to .01% RH
• Dew points down to -80°F
• Easy, low-cost maintenance – under $100/year average

Specifications:

• Min/Max Air Inlet Temperature: 150°F
• Min/Max Operating Pressure: 175
• Power Requirement: 120V
• Compressor Size: 20 Hp
• Port Size: 1” inlet/outlet
• Drain Type: Pneumatic

Replacement parts links:
Water separator replacement element: 21999-0228
Oil coalescing element replacement element: 21999-0202
Tower replacement: 21999-0349

PDF Files:
Pure Regenerative Dryer System
Full Tsunami Catalog
