“N” Series 150 PSI Filter Vessels
Designed for long life, “N” series, multi-purpose, Medium flow, 150 psi filters offer exceptional value. All “N” Series filters are built to the ASME code design for added quality assurance.
“N” Series Medium Flow filter vessels have short lead times. To order “N” Series filter vessel or for assistance with any filtration need, contact Filters.com.
“N” Series Medium Flow Features
- Quality construction at a competitive price
- 150 psi working pressure
- 1/32″ corrosion allowance standard in carbon steel
- All units available with AMSE code stamp
- Aqueous flow rates to 336 GPM
- 2 vessel size options: 6 or 14 cartridge models
- 7 Cartridge length options: 9 3/4″ or 10″, 19 1/2″ or 20″, 29 1/2″ or 30″ and 40″
- Accepts 2 1/2″ diameter by 1″ inside diameter cartridges
- Construction options: Carbon steel-NC Series of 316 stainless steel – NU Series
- 2″ internal pipe thread inlet and outlet connections
- 3″ 150# flanged connections available
- 1/2″ FNPT internal pipe thread inlet chamber drain, and vessel drain are standard
- 316 stainless steel cup and spring cartridge mounting hardware
- Cup design accepts double open end or 222 o-ring style cartridges without modification
- Swing bold closure for fast, easy cartridge replacement
- Buna o-ring closure seal standard; other seal materials available
The Medium Flow Value:
- Inlet Drain and Outlet Drain Connections: 1/2″ FNPT
- NU Series filters have all wetted surfaces made of 316SS
- Legs and Swing Bolts made of Carbon Steel

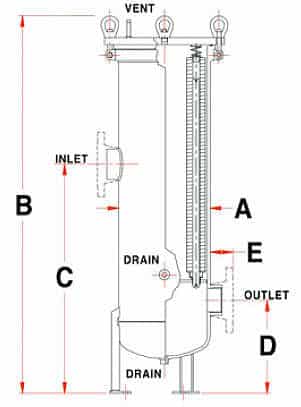

- Dimensions shown in inches
Model Number | A | B | C | D | F |
---|---|---|---|---|---|
NC6SU15N2 | 8″ | 31-1/2″ | 21-1/2″ | 12-3/8″ | |
NU6SU15N2 | 8″ | 31-1/2″ | 21-1/2″ | 12-3/8″ | |
NC6SU15W2 | 8″ | 31-1/2″ | 21-1/2″ | 12-3/8″ | 2-1/4″ |
NU6SU15W2 | 8″ | 31-1/2″ | 21-1/2″ | 12-3/8″ | 2-1/4″ |
NC12DU15N2 | 8″ | 41-1/2″ | 21-1/2″ | 12-3/8″ | |
NU12DU15N2 | 8″ | 41-1/2″ | 21-1/2″ | 12-3/8″ | |
NC12DU15W2 | 8″ | 41-1/2″ | 21-1/2″ | 12-3/8″ | 2-1/4″ |
NU12DU15W2 | 8″ | 41-1/2″ | 21-1/2″ | 12-3/8″ | 2-1/4″ |
NC18TU15N2 | 8″ | 51-1/2″ | 31-1/2″ | 12-3/8″ | |
NU18TU15N2 | 8″ | 51-1/2″ | 31-1/2″ | 12-3/8″ | |
NC18TU15W2 | 8″ | 51-1/2″ | 31-1/2″ | 12-3/8″ | 2-1/4″ |
NU18TU15W2 | 8″ | 51-1/2″ | 31-1/2″ | 12-3/8″ | 2-1/4″ |
NC24QU15N2 | 8″ | 61-1/2″ | 31-1/2″ | 12-3/8″ | |
NU24QU15N2 | 8″ | 61-1/2″ | 31-1/2″ | 12-3/8″ | |
NC24QU15W2 | 8″ | 61-1/2″ | 31-1/2″ | 12-3/8″ | 2-1/4″ |
NU24QU15W2 | 8″ | 61-1/2″ | 31-1/2″ | 12-3/8″ | 2-1/4″ |
NC28DU15W3 | 12″ | 42-3/4 | 22″ | 13″ | 2-7/16″ |
NU28DU15W3 | 12″ | 42-3/4″ | 22″ | 13″ | 2-7/16″ |
NC42TU15W3 | 12″ | 52-3/4″ | 22″ | 13″ | 2-7/16″ |
NU42TU15W3 | 12″ | 52-3/4″ | 22″ | 13″ | 2-7/16″ |
NC56QU15W3 | 12″ | 62-3/4″ | 22″ | 13″ | 2-7/16″ |
NU56QU15W3 | 12″ | 62-3/4″ | 22″ | 13″ | 2-7/16″ |
Model Number | Material | #Round x #High | # of Cartridges | Cartridge Length | Connection Size and Type |
---|---|---|---|---|---|
NC6SU15N2 | Carbon Steel | 6 x 1 | 6 | 9-3/4″ or 10″ | 2″ HNPT |
NU6SU15N2 | 316SS | 6 x 1 | 6 | 9-3/4″ or 10″ | 2″ HNPT |
NC6SU15W2 | Carbon Steel | 6 x 1 | 6 | 9-3/4″ or 10″ | 2″ 150# RFWN |
NU6SU15W2 | 316SS | 6 x 1 | 6 | 9-3/4″ or 10″ | 2″ 150# RFWN |
NC12DU15N2 | Carbon Steel | 6 x 2 | 12 | 19-1/2″ or 20″ | 2″ HNPT |
NU12DU15N2 | 316SS | 6 x 2 | 12 | 19-1/2″ or 20″ | 2″ HNPT |
NC12DU15W2 | Carbon Steel | 6 x 2 | 12 | 19-1/2″ or 20″ | 2″ 150# RFWN |
NU12DU15W2 | 316SS | 6 x 2 | 12 | 19-1/2″ or 20″ | 2″ 150# RFWN |
NC18TU15N2 | Carbon Steel | 6 x 3 | 18 | 29-1/4″ or 30″ | 2″ HNPT |
NU18TU15N2 | 316SS | 6 x 3 | 18 | 29-1/4″ or 30″ | 2″ HNPT |
NC18TU15W2 | Carbon Steel | 6 x 3 | 18 | 29-1/4″ or 30″ | 2″ 150# RFWN |
NU18TU15W2 | 316SS | 6 x 3 | 18 | 29-1/4″ or 30″ | 2″ 150# RFWN |
NC24QU15N2 | Carbon Steel | 6 x 4 | 24 | 40″ | 2″ HNPT |
NU24QU15N2 | 316SS | 6 x 4 | 24 | 40″ | 2″ HNPT |
NC24QU15W2 | Carbon Steel | 6 x 4 | 24 | 40″ | 2″ 150# RFWN |
NU24QU15W2 | 316SS | 6 x 4 | 24 | 40″ | 2″ 150# RFWN |
NC28DU15W3 | Carbon Steel | 14 x 2 | 28 | 19-1/2″ or 20″ | 3″ 150# RFWN |
NU28DU15W3 | 316SS | 14 x 2 | 28 | 19-1/2″ or 20″ | 3″ 150# RFWN |
NC42TU15W3 | Carbon Steel | 14 x 3 | 42 | 29-1/4″ or 30″ | 3″ 150# RFWN |
NU42TU15W3 | 316SS | 14 x 3 | 42 | 29-1/4″ or 30″ | 3″ 150# RFWN |
NC56QU15W3 | Carbon Steel | 14 x 4 | 56 | 40″ | 3″ 150# RFWN |
NU56QU15W3 | 316SS | 14 x 4 | 56 | 40″ | 3″ 150# RFWN |
